This tutorial describes how to install and configure LDAP server (389-DS) in CentOS 7. About 389-DS Server 389-DS (389 Directory Server) is an open source enterprise class LDAP server for Linux, and is developed by Red Hat community. It is hardened by real-world use, is full-featured, supports multi-master replication, and already handles many of the largest LDAP deployments in the world. The 389 Directory Server can be downloaded for free, and set up in less than an hour using the graphical console. 389-DS can handle thousands of concurrent users more effectively.

• How To Install Ldap
• How To Install Ldap On Centos

This tutorial describes how to install and configure LDAP server (389-DS) in CentOS 7. About 389-DS Server. 389-DS (389 Directory Server) is an open source enterprise class LDAP server for Linux, and is developed by Red Hat community.It is hardened by real-world use, is full-featured, supports multi-master replication, and already handles many of the largest LDAP.

Add your hostname as shown below. 192.168.1.150 server1.unixmen.local server1 Change the values as per your requirement. Firewall Configuration Allow the following ldap ports to your iptables. Firewall-cmd -permanent -add-port=389/tcp firewall-cmd -permanent -add-port=636/tcp firewall-cmd -permanent -add-port=9830/tcp Restart firewall. Firewall-cmd -reload 3.

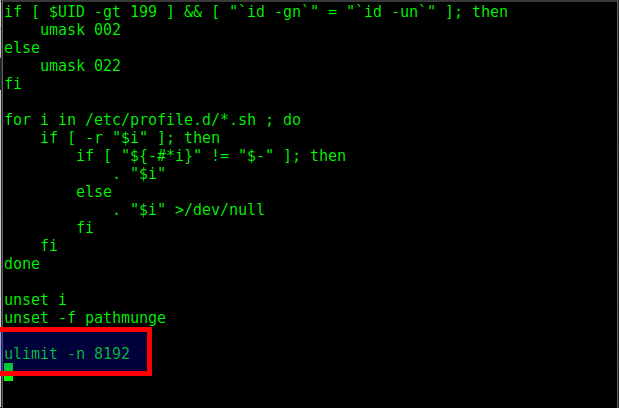

Add EPEL and REMI Repository Follow the below links to install and enable EPEL and REMI repositories. Performance and Security tuning for LDAP server Before installing LDAP server, we have to adjust some files for performance and security. Edit file “/etc/sysctl.conf”, vi /etc/sysctl.conf Add the following lines at the end. net.ipv4.tcpkeepalivetime = 300 net.ipv4.iplocalportrange = 1024 65000 fs.file-max = 64000 Edit file “/etc/security/limits.conf”, vi /etc/security/limits.conf Add the following lines at the bottom. soft nofile 8192. hard nofile 8192 Edit file “/etc/profile”, vi /etc/profile Add the line at the end. ulimit -n 8192 Edit file “/etc/pam.d/login”, vi /etc/pam.d/login Add the line at the end.

session required /lib/security/pamlimits.so Now Restart the server. Install 389 Directory Server Create a LDAP user account. Useradd ldapadmin passwd ldapadmin Install 389-ds-base package using command: yum install 389-ds-base openldap-clients Right now, all required packages for 389-DS server are not available in the CentOS repositories.

We have to download and install manually the following packages. Now, install the above packages one by one as shown below.

This is the continuation of our previous tutorial. In our previous tutorial we learned.

In this guide let us see how to a authenticate a Linux client using OpenLDAP server. This guide was tested on Debian 7 Desktop, although it will work on all Debian and Ubuntu derivatives. If you encounter any difficulties, do let me know. I will check and update this how-to. Install LDAP client package on Debian 7 I assume that you’ve have a working LDAP server already.

Now let us install the required packages in our LDAP client. All steps should be done by ‘root’ user or use ‘sudo’ in-front of every command. 3d ultra pinball creep night for windows 8.

# apt-get install libnss-ldap libpam-ldap nscd During installation, you will be asked a variety of questions. Read them carefully and enter the appropriate values. First enter the ldap server IP address as shown in the below screenshot. Note that you should enter LDAP server URI as ldap://ip-address-of-ldapserver/. Then enter the distinguished name of the search base.

This value should match as per your LDAP server /etc/phpldaadmin/config.php file values. In my case it’s dc=unixmen, dc=com. Select Ldap version to use as 3. Enter LDAP administrative account details. In our case it was: cn=admin, dc=unixmen.com, dc=com.

Enter LDAP administrative password: The next window will say that you have to manually edit nsswitch.conf file. Click Ok to continue. Now the libnss-ldap package has been installed. Now the above questions will be repeated for libpam-ldap.

We don’t need to act the client LDAP admin account as local root, hence we will select No. Now let us reconfigure libnss-ldap to improve debconf configuration by entering the following command: # dpkg-reconfigure libnss-ldap Make sure that the LDAP server URI is correct.

Make sure that the LDAP server search base: LDAP version to use: LDAP database doesn’t require login, hence we select No. Now we have installed ldap client packages. Configure Client We should tell our client system to look for LDAP server by adjusting their configuration files.

How To Install Ldap

To do so, First edit file /etc/ldap/ldap.conf, # nano /etc/ldap/ldap.conf Uncomment the following lines and Enter your LDAP server search BASE and URI as shown below. BASE dc=unixmen,dc=com URI ldap://192.168.1.200.

How To Install Ldap On Centos

Edit file /etc/nsswitch.conf, # nano /etc/nsswitch.conf Find the following three lines and adjust them as shown below. passwd: compat ldap group: compat ldap shadow: compat ldap. netgroup: ldap. Now restart nscd service: # /etc/init.d/nscd restart PAM Configuration Now we should verify the PAM configuration. The PAM configuration is modified during libnss-ldap installation. But it is advisable to verify the PAM configuration files as look like below. Edit file /etc/pam.d/common-auth, # nano /etc/pam.d/common-auth Make sure this file contains the following lines.
